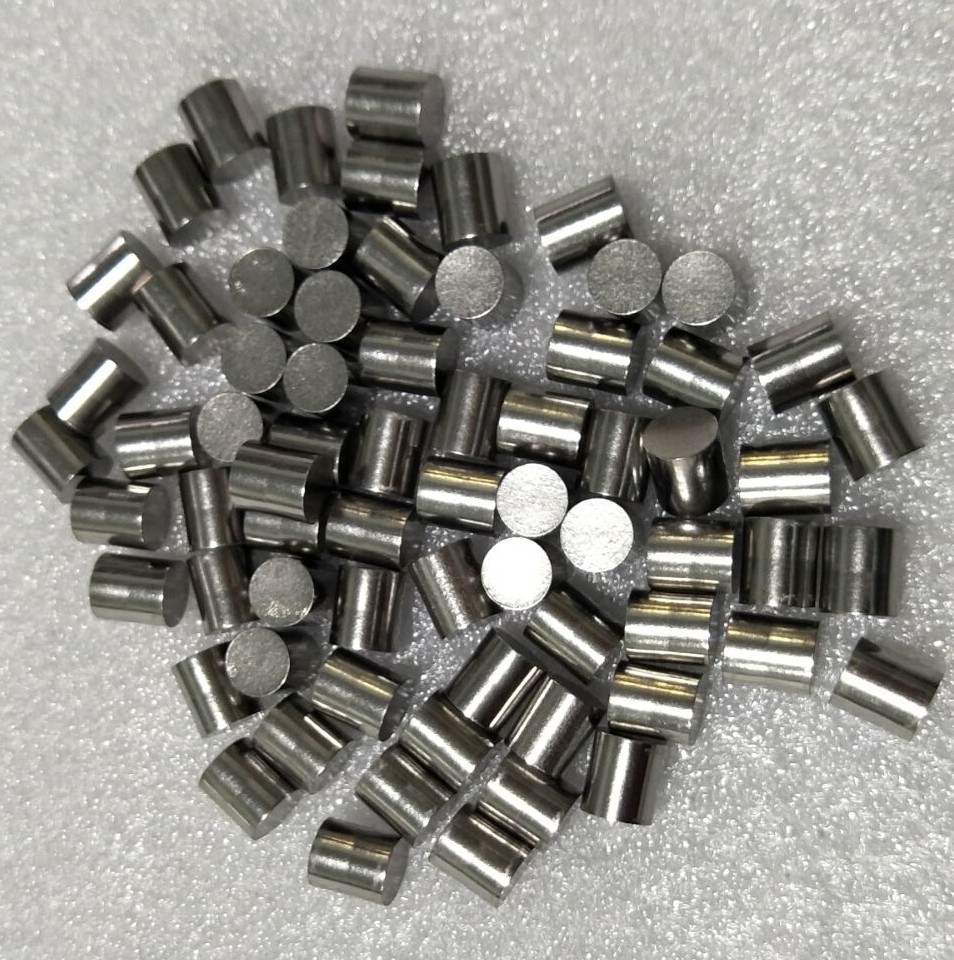

Various size tungsten balance weight tungsten cylinder
+
  • Various size tungsten balance weight tungsten cylinder

Various size tungsten balance weight tungsten cylinder

MOQ:7-15KGS

Delivery Time:3-4 days

Keywords:

Insert for coal mining

Product Description

Application:
Tungsten alloy counterweights and tungsten weights are used in applications such as weights in yacht, sailboat, submarine and other vessels, racing weights, tungsten stems for oil-well logging, tungsten fishing sinkers and so on. And they are also found with good advantages in aircraft planes including aircraft control surfaces, rotor blades, tungsten alloy hunting shot, tungsten alloy hand weights, tungsten alloy ski, tungsten alloy  squash racquet, tungsten alloy weight throw,  Tungsten Alloy Tennis Racket Balance Weights, tungsten alloy stud for horse, trim weights, guidance platforms, balancing of fly wheels and turbines, vibration dampening governors and ballast weights. Besides, they could also be used as fuse masses weights for self-winding clocks and watches.



Tungsten Alloy Cylinder Specification:


 1. Diameter: 2.0-100.0mm
 2. Length: 50-1000mm
 3. Density: 16.5-18.75 g/cm3
 4. Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
 5. Surface: Sintered surface, Forged surface, Ground surface



Tungsten is a metal with one of the highest densities. Due to its very high density Tungsten is an excellent weighting material for pinewood derby cars. Only gold, platinum, and a few other rare and expensive metals have a similar density. Also tungsten is completely non-toxic and environmentally friendly.



Tungsten Alloy Cylinder Data Sheet



Grades Density    g/cm Hardness

HRC
Tensile strength

MPa
Elongation % Impact toughness

MJ/m²
H273 17.10±0.15 ≥23 ≥900 ≥24 2130
H263 17.25±0.15 ≥23 ≥900 ≥23 ≥1.20
H253 17.40±0.15 ≥24 ≥900 ≥22 ≥1.10
H243 17.60±0.15 ≥24 ≥920 ≥20 ≥0.90
H232 18.10±0.15 ≥25 ≥920 ≥14 ≥0.45
H231 18.30±0.15 ≥26 ≥920 ≥12 20.30
H221 18.50±0.15 ≥27 ≥920 ≥10 20.22
WNiICu 16.00-18.50 222 ≥450 2-8
