Application:

Tungsten alloy is a kind of tungsten matrix (W content 85-99%), and add Ni, Cu, Co, Mo, Cr and other elements of the alloy. According to alloy composition characteristics and use is divided into W-Ni-Fe, W-Ni-Cu, W-Co, W-WC-Cu, W-Ag and other main series, its density is as high as 16.5-19.0 g/cm3, and is known as the world's high gravity tungsten alloy, it also has a series of excellent characteristics, more than: The general gravity is 16.5-18.75g/cm3, high strength: tensile strength is 700-1000Mpa, strong absorption of rays: its ability is 30-40% higher than lead, thermal conductivity: 5 times that of die steel; Small coefficient of thermal expansion: only 1/2-1/3 of iron or steel, good conductivity; It has good weldability and machinability.

In view of the above excellent functions of high-gravity tungsten alloy, it is widely used in aerospace, aviation, military, oil drilling, electrical instrumentation, medical and other industries. Medical tungsten alloy ray shielding material series

Tungsten alloy multi-leaf grating blade (MLC), thickness 2.0-3.8mm, flatness 0.05mm; Tungsten alloy collimator; Tungsten alloy (high gravity alloy) protective tank - radioactive shielding wall for medical use; Tungsten alloy shielded needle -- used for shielding medical radioactive liquid; Tungsten alloy storage - tanks, boxes and other containers for storing radioactive materials; Collimator - for medical linac and cyclotron; Tungsten alloy container - used for radiation shielding of 60Co therapy unit; Tungsten alloy collimator for gamma camera.

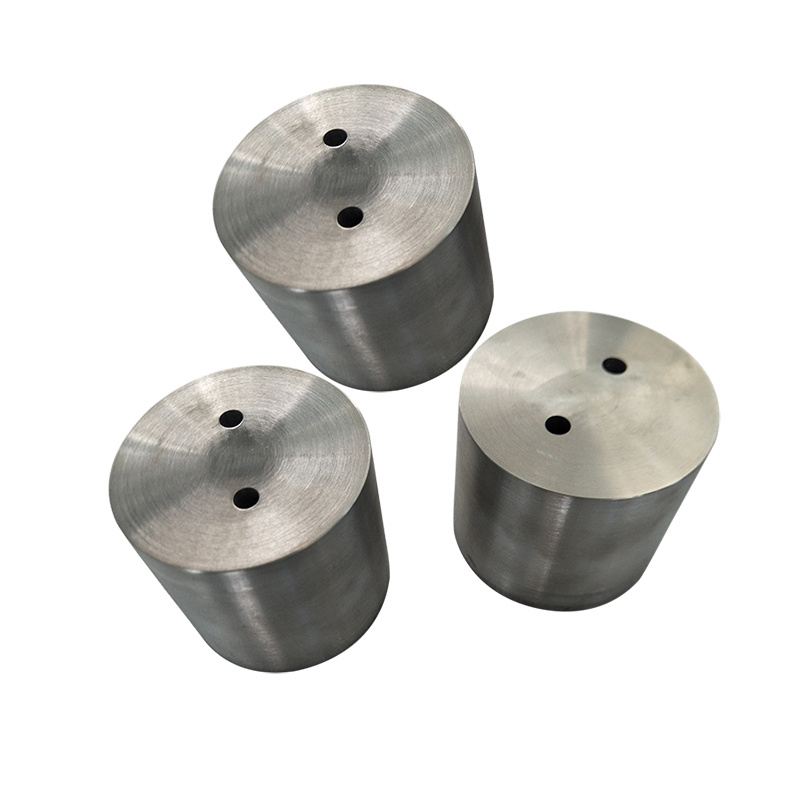

Tungsten Alloy Cylinder Specification:
 1. Diameter: 2.0-100.0mm
 2. Length: 50-1000mm
 3. Density: 16.5-18.75 g/cm3
 4. Composition: W content: 85-99%, W-Ni-Fe, W-Ni-Cu
 5. Surface: Sintered surface, Forged surface, Ground surface

Tungsten is a metal with one of the highest densities. Due to its very high density Tungsten is an excellent weighting material for pinewood derby cars. Only gold, platinum, and a few other rare and expensive metals have a similar density. Also tungsten is completely non-toxic and environmentally friendly.

Tungsten Alloy Cylinder Data Sheet
